Parameter
| Width of bobbin | 400~950mm |
|---|---|
| Max diameter of the cable | 20 |
| Brand Name | QingYun |
| Pay off speed | 120m/min |
| Pay off motor | 5.5kW AC variable frequency motor (Siemens) |
| pay off control | Siemens G120 series AC driver |
| Traversing motor | BWED110-35x17-0.55KW (AC) |
| Clamp motor | Y90L-6-B5-0.75KW, 960RPM (AC) |
| Lifting motor | BLD10-43-0.55KW(AC 2 sets |
| Warranty | 3 years |

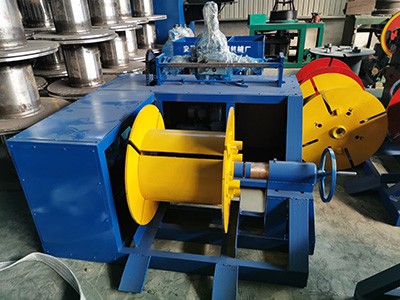

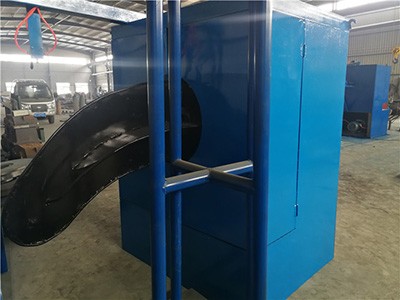

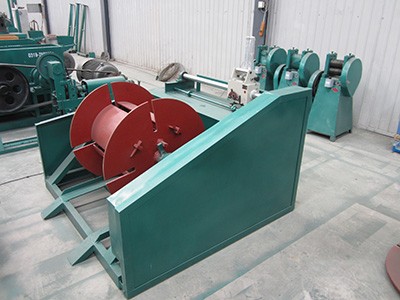

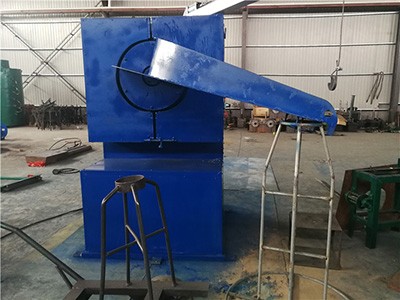

Introduction
Content A wire drawing machine is a device that is used in conjunction with a wire drawing machine to collect the desired wire diameter.
Usage:
The steel bar winding machine is suitable for winding and bundling cold drawn and cold-rolled ribbed steel bars, and can be used in conjunction with steel bar winding machines, cold-rolled ribbed steel bars, and steel bar extension machines. Adopting a variable speed motor, automatic cycloidal, equipped with a dedicated combination control cabinet, easy to operate.
Composition:
Composed of main mechanisms such as power system, cable arrangement mechanism, and drum
Usage:
The steel bar winding machine is suitable for winding and bundling cold drawn and cold-rolled ribbed steel bars, and can be used in conjunction with steel bar winding machines, cold-rolled ribbed steel bars, and steel bar extension machines. Adopting a variable speed motor, automatic cycloidal, equipped with a dedicated combination control cabinet, easy to operate.
Composition:
Composed of main mechanisms such as power system, cable arrangement mechanism, and drum
